The bottom track of the shaft wall is secured to the concrete floor slab with fasteners per structural drawings. Steel studs are fastened to the track with one sheet metal screw on each side of every stud. Gypsum board stops one-half inch above the floor to receive a backer rod and sealant, using white smoke or acoustic sealant at non-rated partitions and red fire sealant at rated partitions. Additional layers of gypsum board are applied where required.

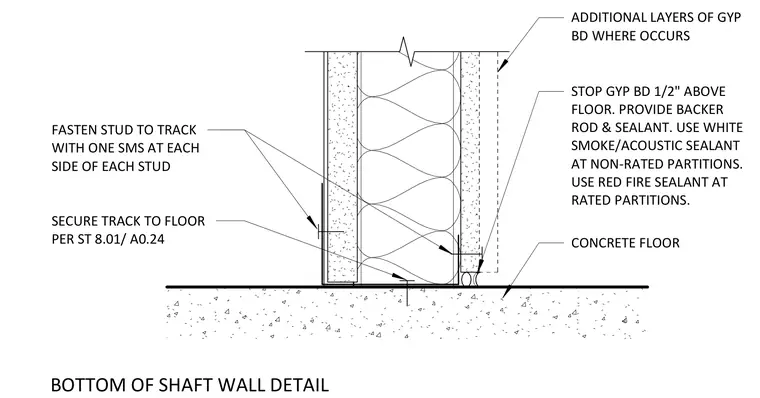

BOTTOM OF SHAFT WALL DETAIL ADDITIONAL LAYERS OF GYP BD WHERE OCCURS STOP GYP BD 1/2" ABOVE FLOOR. PROVIDE BACKER ROD & SEALANT. USE WHITE SMOKE/ACOUSTIC SEALANT AT NON-RATED PARTITIONS. USE RED FIRE SEALANT AT RATED PARTITIONS. CONCRETE FLOOR SECURE TRACK TO FLOOR PER ST 8.01/ A0.24 FASTEN STUD TO TRACK WITH ONE SMS AT EACH SIDE OF EACH STUD
