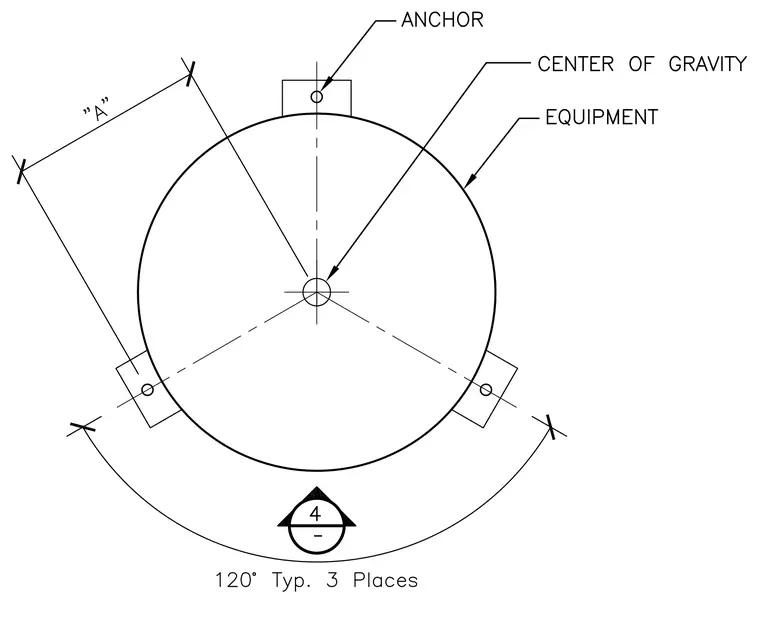

Cylindrical equipment is secured by three mounting lugs spaced symmetrically at one hundred twenty degree intervals around the perimeter. Each lug contains a single anchor hole centered on a radial layout line extending from the center of gravity. Dimension lines establish spacing labeled A between the anchor lugs.
