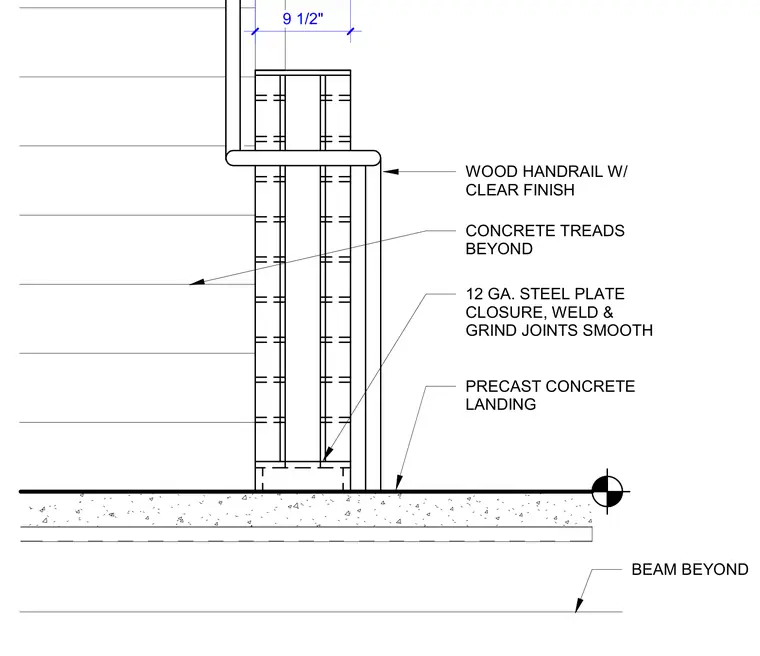

A twelve-gauge steel plate closure assembly is welded with joints ground smooth at the precast concrete landing and beam beyond. A wood handrail with a clear finish extends vertically above the landing, positioned nine and one-half inches from the edge. Concrete treads are visible beyond the assembly.
9 1/2" WOOD HANDRAIL W/ CLEAR FINISH CONCRETE TREADS BEYOND 12 GA. STEEL PLATE CLOSURE, WELD & GRIND JOINTS SMOOTH PRECAST CONCRETE LANDING BEAM BEYOND
