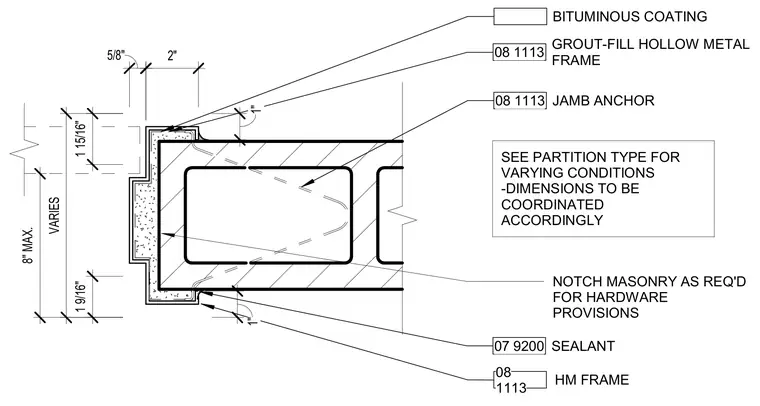

A hollow metal frame is set into a masonry wall opening with a grout-filled interior cavity and a bituminous coating applied to the exterior contact surface. Jamb anchors secure the frame to the masonry at a maximum spacing of eight inches. The masonry is notched as required for hardware provisions and specific conditions. A sealant joint seals the junction between the metal frame and the adjacent masonry surface.
2" 5/8" 1 15/16" 1 9/16" SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY 08 1113 HM FRAME NOTCH MASONRY AS REQ'D FOR HARDWARE PROVISIONS BITUMINOUS COATING 08 1113 GROUT-FILL HOLLOW METAL FRAME 07 9200 SEALANT 1" 1" VARIES 8" MAX. 08 1113 JAMB ANCHOR
