Architectural · A-B96RE

CLT Floor Cantilever and Exterior Wall Section Detail

Materials

Elements

Columns Windows Facades / Cladding Floors / Slabs Insulation

About this detail

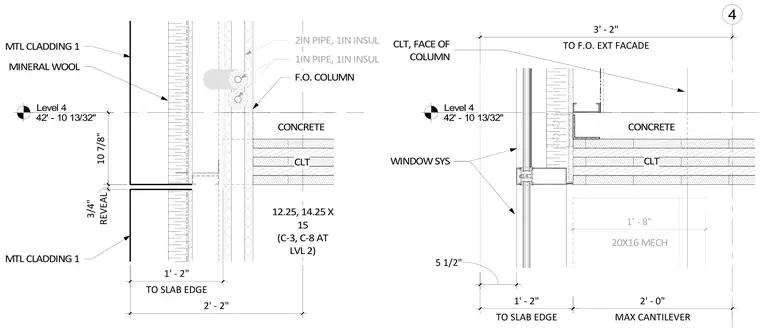

A wall and floor section detail connects a concrete-topped cross-laminated timber slab and the exterior facade at Level 4. The assembly incorporates metal cladding supported over mineral wool insulation, featuring a three-quarter-inch reveal. Mechanical ductwork and insulated piping pass through the floor-to-wall zone near the column face. The window system integrates with the slab edge, maintaining a specific offset distance from the face of the column to the exterior facade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
