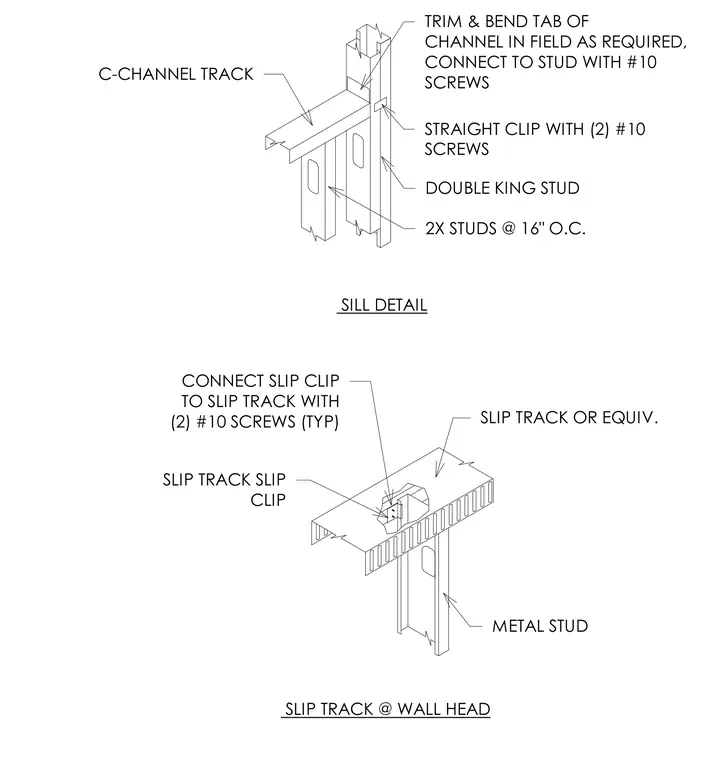

Cold-formed steel framing details showing a slip track connection at the wall head and a sill detail with a C-channel track. The slip track assembly utilizes a slip track clip secured to the slip track and metal stud with number 10 screws. The sill detail connects double king studs spaced at 16 inches on center using a straight clip with number 10 screws. A C-channel track is framed with field-trimmed and bent tabs connected to the studs using number 10 screws.
SLIP TRACK @ WALL HEAD SILL DETAIL CONNECT SLIP CLIP TO SLIP TRACK WITH (2) #10 SCREWS (TYP) SLIP TRACK SLIP CLIP METAL STUD SLIP TRACK OR EQUIV. 2X STUDS @ 16" O.C. DOUBLE KING STUD STRAIGHT CLIP WITH (2) #10 SCREWS TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS C-CHANNEL TRACK
