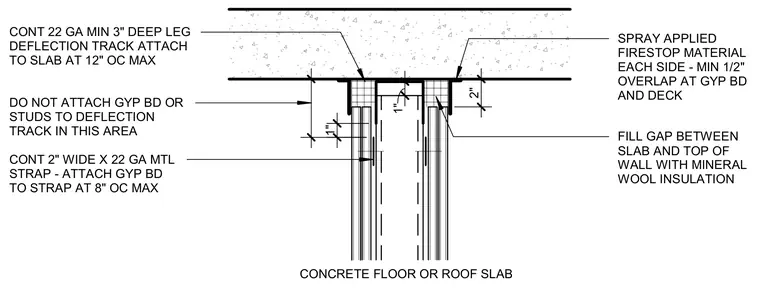

This two-hour fire-resistant head-of-wall assembly connects a framed partition wall to an overhead concrete floor or roof slab using a continuous twenty-two gauge minimum three-inch deep leg deflection track attached to the slab at twelve inches on center maximum. The gap between the slab and the top of the wall is filled with mineral wool insulation. Spray-applied firestop material is applied to each side with a minimum one-half inch overlap at the gypsum board and slab. A continuous two-inch wide by twenty-two gauge metal strap ties the gypsum board together with fasteners spaced at eight inches on center maximum. Gypsum board and studs remain unattached to the deflection track in this designated movement area.
1" 2" 1" 4 47/256" FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO SLAB AT 12" OC MAX CONCRETE FLOOR OR ROOF SLAB
