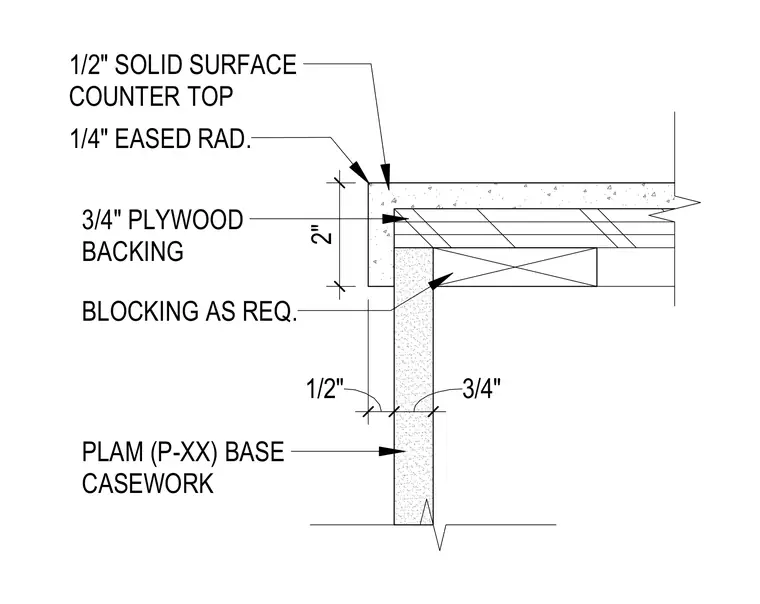

A one-half inch solid surface countertop sits over three-quarter inch plywood backing supported by required wood blocking. The front edge features a one-quarter inch eased radius with a two-inch drop return. The assembly rests on plastic laminate base casework.
1/2" 3/4" 2" 1/2" SOLID SURFACE COUNTER TOP 1/4" EASED RAD. 3/4" PLYWOOD BACKING BLOCKING AS REQ. PLAM (P-XX) BASE CASEWORK
