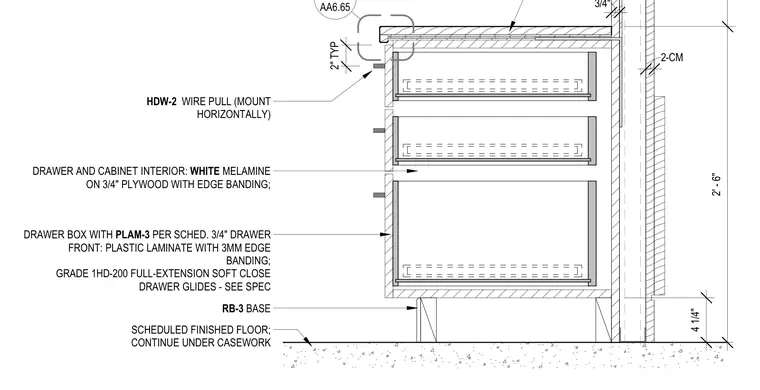

The casework base rests upon a scheduled finished floor continuing under the cabinetry, supported by an RB-3 base. Drawer boxes are constructed from three-quarter-inch plywood with white melamine interiors and edge banding, fitted with grade 1HD-200 full-extension soft-close drawer glides per specification AA6.65. Drawer fronts consist of three-quarter-inch plastic laminate with 3mm edge banding and are equipped with HDW-2 horizontal wire pulls.
3/4" 2-CM SCHEDULED FINISHED FLOOR; CONTINUE UNDER CASEWORK RB-3 BASE DRAWER BOX WITH PLAM-3 PER SCHED. 3/4" DRAWER FRONT: PLASTIC LAMINATE WITH 3MM EDGE BANDING; GRADE 1HD-200 FULL-EXTENSION SOFT CLOSE DRAWER GLIDES - SEE SPEC AA6.65 DRAWER AND CABINET INTERIOR: WHITE MELAMINE ON 3/4" PLYWOOD WITH EDGE BANDING; 2' - 6" 4 1/4" HDW-2 WIRE PULL (MOUNT HORIZONTALLY) 2" TYP
