A steel plate stair stringer frames into a concrete landing slab utilizing a steel closure plate. The assembly features a one-and-a-half-inch outer diameter stainless steel tube guard rail mounted to the stair framing, with specific alignment requirements between the flat bar and the plane change of the stringer plate. Floor finishes align with the landing slab as indicated on architectural finish plans.

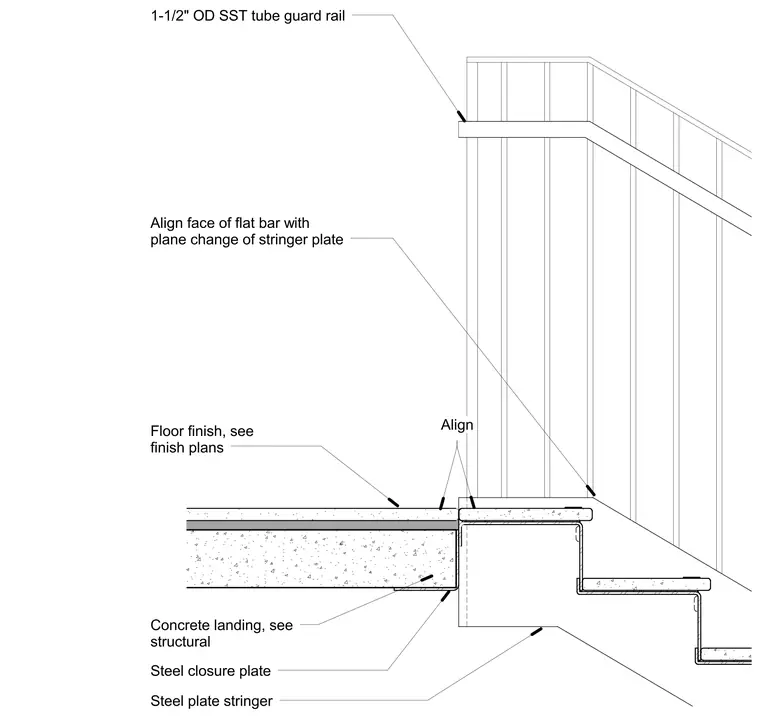

Concrete landing, see structural Steel closure plate Steel plate stringer Align Floor finish, see finish plans 1-1/2" OD SST tube guard rail Align face of flat bar with plane change of stringer plate
