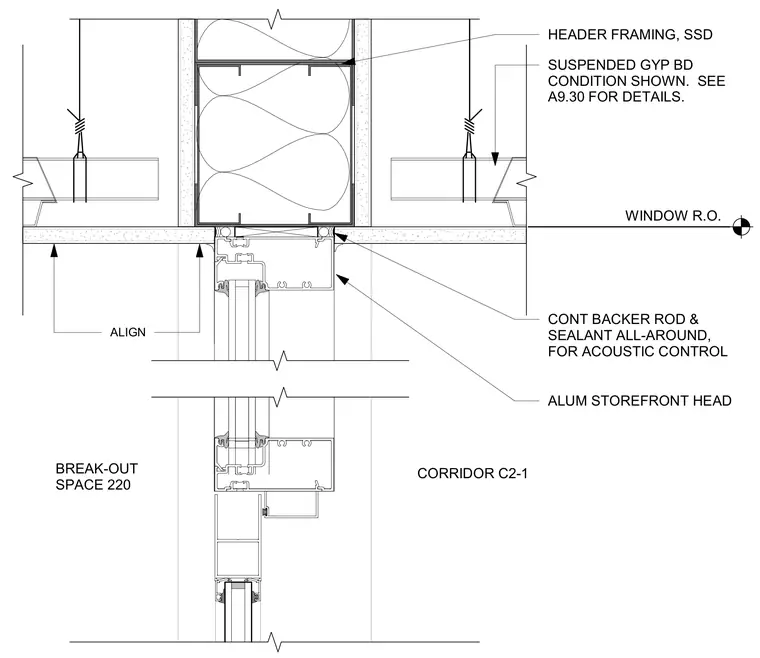

An aluminum storefront head is mounted below structural header framing at an interior partition. Continuous backer rod and sealant are installed all around the perimeter for acoustic control. The assembly aligns with suspended gypsum board ceilings on both sides of the storefront opening.
ALUM STOREFRONT HEAD HEADER FRAMING, SSD CONT BACKER ROD & SEALANT ALL-AROUND, FOR ACOUSTIC CONTROL WINDOW R.O. ALIGN SUSPENDED GYP BD CONDITION SHOWN. SEE A9.30 FOR DETAILS. BREAK-OUT SPACE 220 CORRIDOR C2-1
