Architectural · A-B78FF

DMV Station Transaction Counter and Breezeblock Partition Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Floors / Slabs Bracing Millwork / Casework

Connections

Bracing Connection

About this detail

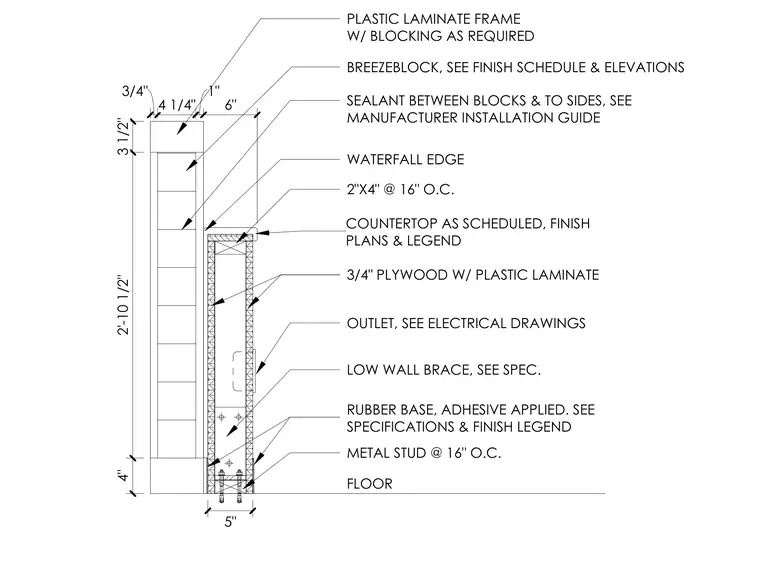

This assembly features a transaction counter constructed with metal studs at sixteen inches on center, three-quarter-inch plywood sheathing, and a plastic laminate finish with a waterfall edge. The base includes an adhesive-applied rubber base and an integrated outlet as coordinated on electrical drawings. Adjacent to the counter is a breezeblock wall feature set within a plastic laminate frame with blocking as required, utilizing sealant between blocks and to the sides. The support structure incorporates a low wall brace and anchors into the floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
