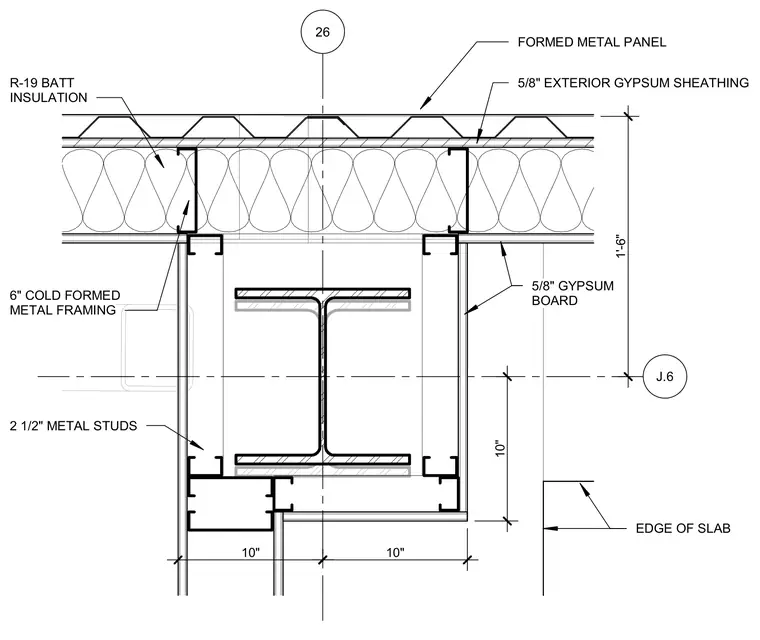

This plan detail shows a structural steel column boxed out with six-inch cold-formed metal framing and two-and-a-half-inch interior metal studs. The assembly is finished with five-eighths-inch gypsum board on the interior side and five-eighths-inch exterior gypsum sheathing topped with formed metal panels on the exterior. R-19 batt insulation fills the cavity between the framing members. The detail references grid line J.6 and indicates the edge of the slab.
26 J.6 EDGE OF SLAB 10" 10" 1'-6" 10" FORMED METAL PANEL 5/8" EXTERIOR GYPSUM SHEATHING 5/8" GYPSUM BOARD 2 1/2" METAL STUDS 6" COLD FORMED METAL FRAMING R-19 BATT INSULATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
