Architectural · A-B7699

Woven Wire Mesh Screen and Soffit Connection Detail

Materials

Steel Metal (misc.)

Elements

Ceilings Drainage Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Timber / Mass-Timber Connection

About this detail

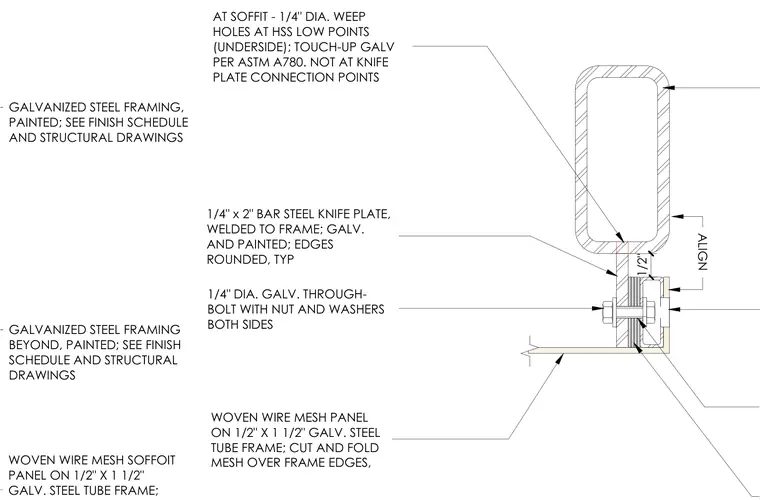

A woven wire mesh panel on a one-half inch by one-and-a-half-inch galvanized steel tube frame is secured to a hollow structural section support. A one-quarter inch by two-inch bar steel knife plate is welded to the frame with rounded edges and bolted using a one-quarter inch diameter galvanized through-bolt with a nut and washers on both sides. A one-quarter inch diameter weep hole is provided at the hollow structural section low points on the underside, with touch-up galvanizing per ASTM A780 applied everywhere except at the knife plate connection points. Galvanized steel framing appears beyond, painted per the finish schedule and structural drawings.
