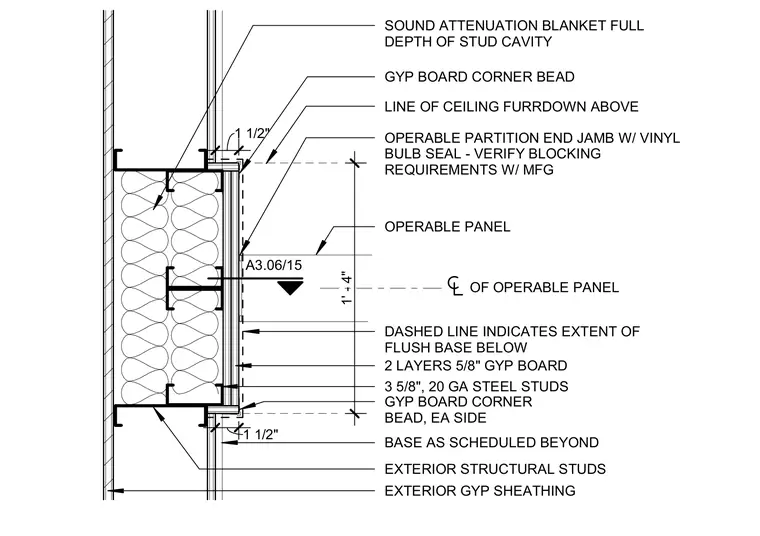

An operable partition end jamb with a vinyl bulb seal meets a partition framed with three-and-five-eighths-inch, twenty-gauge steel studs and two layers of five-eighths-inch gypsum board on each side. The stud cavity is filled with a sound attenuation blanket across its full depth, and gypsum board corner beads finish each corner at the jamb interface. The assembly includes blocking requirements verified with the manufacturer and aligns with a ceiling furrdown above and a flush base below.
EXTERIOR STRUCTURAL STUDS EXTERIOR GYP SHEATHING 2 LAYERS 5/8" GYP BOARD OPERABLE PARTITION END JAMB W/ VINYL BULB SEAL - VERIFY BLOCKING REQUIREMENTS W/ MFG 1 1/2" 1 1/2" OPERABLE PANEL LINE OF CEILING FURRDOWN ABOVE 1' - 4" SOUND ATTENUATION BLANKET FULL DEPTH OF STUD CAVITY BASE AS SCHEDULED BEYOND 3 5/8", 20 GA STEEL STUDS OF OPERABLE PANEL GYP BOARD CORNER BEAD, EA SIDE GYP BOARD CORNER BEAD A3.06/15 DASHED LINE INDICATES EXTENT OF FLUSH BASE BELOW
