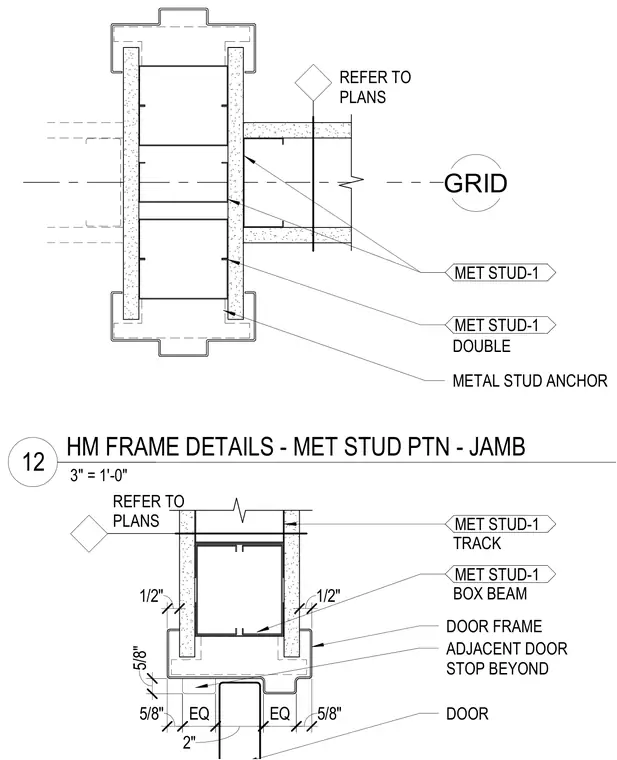

A hollow metal frame jamb detail for a double egress door set into a metal stud partition. The assembly features a double metal stud configuration reinforced with a box beam track and anchored with metal stud anchors. Gypsum board layers finish the partition framing around the hollow metal door frame profile.
GRID MET STUD-1 METAL STUD ANCHOR REFER TO PLANS DOUBLE MET STUD-1 5/8" 5/8" EQ 2" EQ 5/8" DOOR FRAME DOOR ADJACENT DOOR STOP BEYOND MET STUD-1 BOX BEAM MET STUD-1 TRACK 1/2" 1/2" REFER TO PLANS 3" = 1'-0" 12 HM FRAME DETAILS - MET STUD PTN - JAMB
