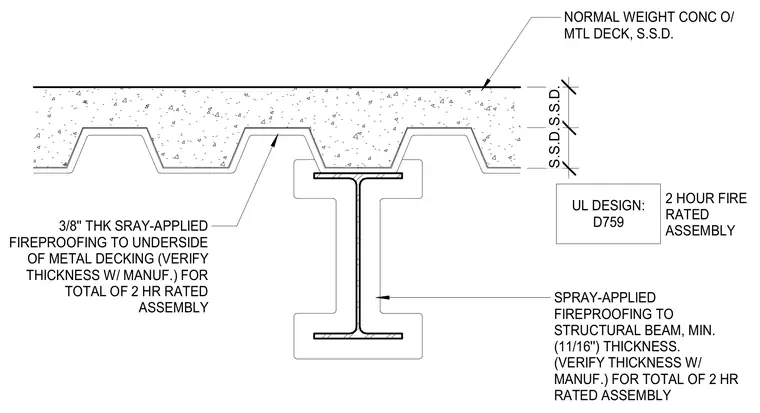

This assembly consists of normal weight concrete over a metal deck supported by a structural steel beam. Spray-applied fireproofing is applied to the underside of the metal decking at a minimum thickness of 3/8 inch. Additional spray-applied fireproofing is applied to the structural steel beam at a minimum thickness of 11/16 inch. Both thicknesses must be verified with the manufacturer to achieve the total 2-hour fire-rated assembly per UL design D759.
UL DESIGN: D759 2 HOUR FIRE RATED ASSEMBLY S.S.D.S.S.D. NORMAL WEIGHT CONC O/ MTL DECK, S.S.D. SPRAY-APPLIED FIREPROOFING TO STRUCTURAL BEAM, MIN. (11/16'') THICKNESS. (VERIFY THICKNESS W/ MANUF.) FOR TOTAL OF 2 HR RATED ASSEMBLY 3/8'' THK SRAY-APPLIED FIREPROOFING TO UNDERSIDE OF METAL DECKING (VERIFY THICKNESS W/ MANUF.) FOR TOTAL OF 2 HR RATED ASSEMBLY
