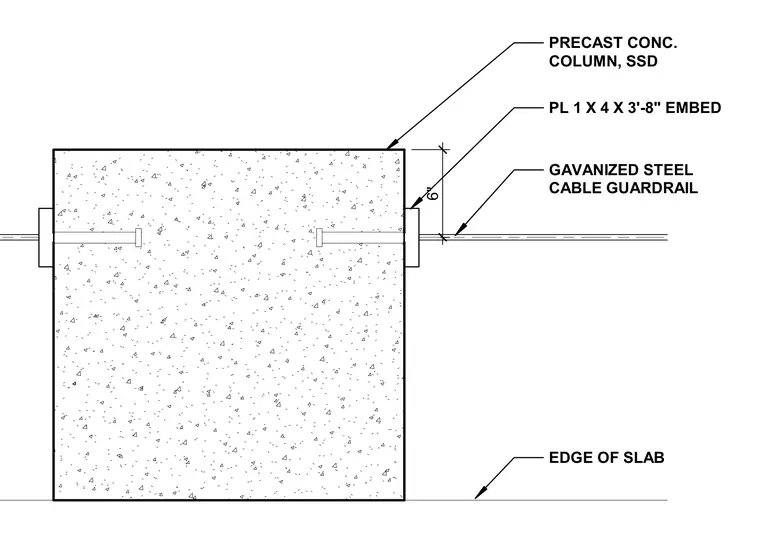

A galvanized steel cable guardrail is anchored to a precast concrete column using a 1-inch by 4-inch by 3 feet 8 inches steel embed plate. The cable aligns six inches above the edge of slab.
GAVANIZED STEEL CABLE GUARDRAIL 6" EDGE OF SLAB PRECAST CONC. COLUMN, SSD PL 1 X 4 X 3'-8" EMBED
