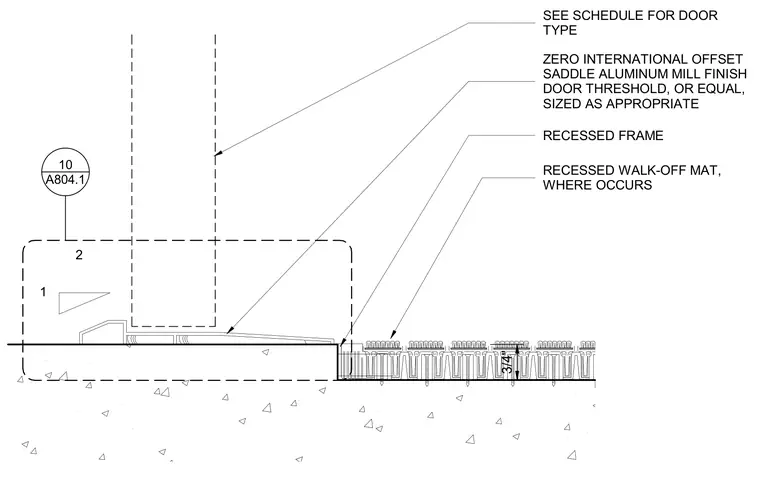

A recessed walk-off mat is installed at the entryway adjacent to a zero international offset saddle aluminum mill finish door threshold. The mat sits inside a recessed frame set into the floor construction. Door types are coordinated per the architectural schedule.
ZERO INTERNATIONAL OFFSET SADDLE ALUMINUM MILL FINISH DOOR THRESHOLD, OR EQUAL, SIZED AS APPROPRIATE RECESSED WALK-OFF MAT, WHERE OCCURS RECESSED FRAME 2 1 3/4" A804.1 10 SEE SCHEDULE FOR DOOR TYPE
