Architectural · A-B68JB

Roof Parapet and Louver System Detail

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Membrane / Roofing

Elements

Roofs Parapets Ceilings Decks Waterproofing / Flashing Insulation Connections / Plates

About this detail

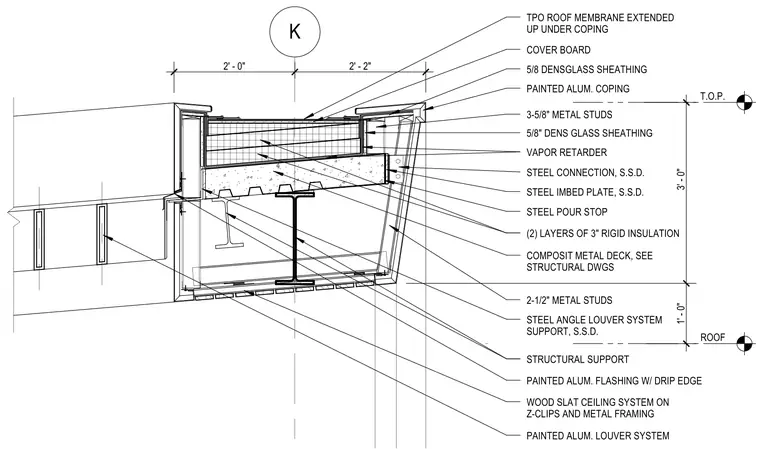

A roof parapet and overhang assembly features a TPO roof membrane extending up under a painted aluminum coping over a cover board and five-eighths-inch densglass sheathing. The parapet wall is framed with three-and-five-eighths-inch metal studs, a vapor retarder, and two layers of three-inch rigid insulation over a composite metal deck supported by structural steel and a steel pour stop. At the underside, a painted aluminum louver system is tied to structural supports using steel angles, alongside a wood slat ceiling system mounted on Z-clips and metal framing with a painted aluminum flashing with drip edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
