Bar grate treads feature integrated diamond plate nosings and risers supported by steel stringers, with dimensions of eleven inches for the typical tread and a two-inch wide color-contrasting non-slip strip at all treads and upper approach. Steel stringers are coordinated per structural drawings.

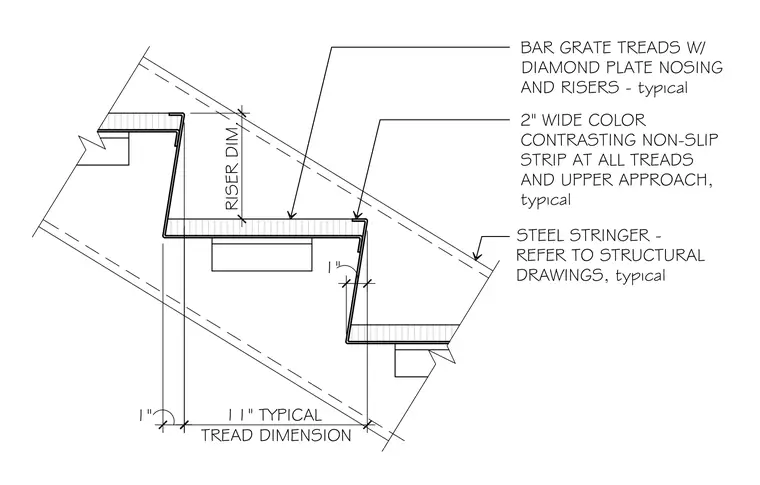

BAR GRATE TREADS W/ DIAMOND PLATE NOSING AND RISERS - typical 2" WIDE COLOR CONTRASTING NON-SLIP STRIP AT ALL TREADS AND UPPER APPROACH, typical STEEL STRINGER - REFER TO STRUCTURAL DRAWINGS, typical RISER DIM. 11" TYPICAL TREAD DIMENSION 1" 1" -v
