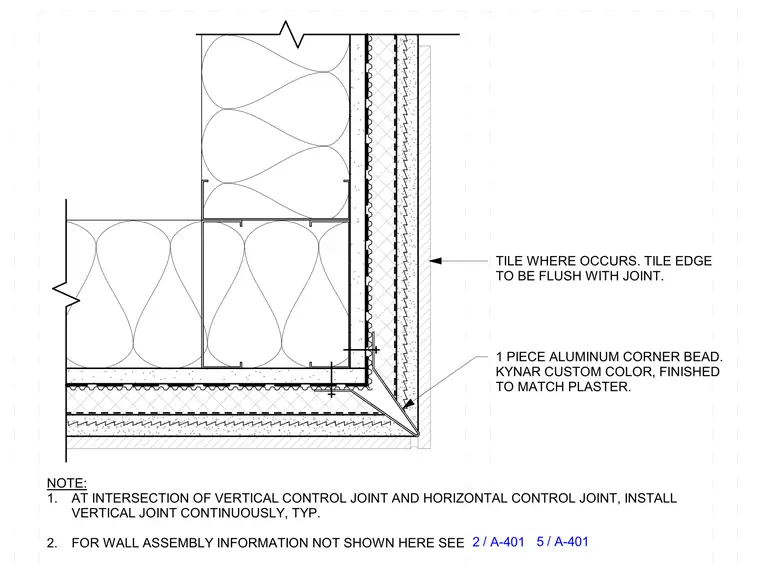

A typical outside corner condition for exterior plaster and tile wall finishes over metal stud framing. A one-piece aluminum corner bead with a custom Kynar finish matches the adjacent plaster and aligns at the external 90-degree junction. Where tile occurs, the tile edge is installed flush with the joint. Vertical control joints are specified to run continuously through intersections with horizontal control joints.
NOTE: 1. AT INTERSECTION OF VERTICAL CONTROL JOINT AND HORIZONTAL CONTROL JOINT, INSTALL VERTICAL JOINT CONTINUOUSLY, TYP. 2. FOR WALL ASSEMBLY INFORMATION NOT SHOWN HERE SEE 1 PIECE ALUMINUM CORNER BEAD. KYNAR CUSTOM COLOR, FINISHED TO MATCH PLASTER. TILE WHERE OCCURS. TILE EDGE TO BE FLUSH WITH JOINT. / 2 A-401 / 5 A-401
