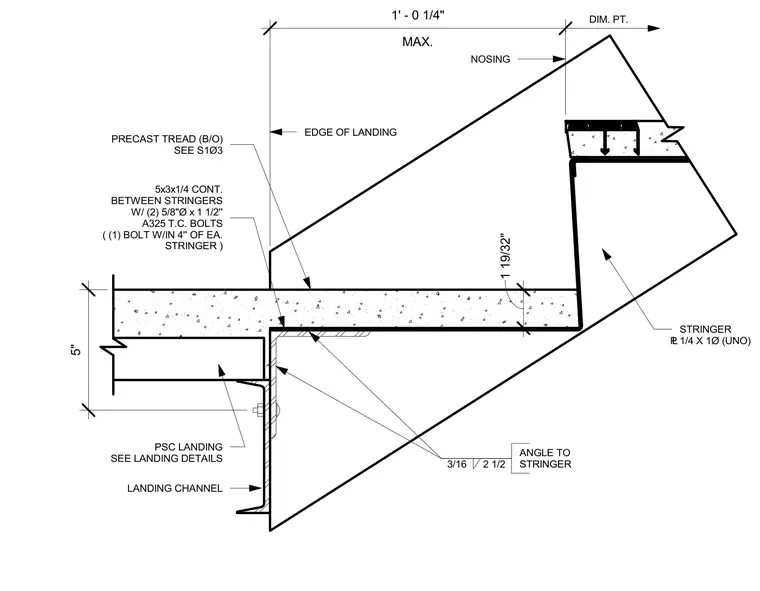

A stair stringer connects to a landing channel supporting a five-inch precast concrete landing. A continuous 5x3x1/4 angle spans between stringers, secured with two 5/8-inch diameter by 1-1/2-inch A325 tension-control bolts with one bolt within four inches of each stringer. A plate measuring 1/4 by 10 spans the stringer where indicated, joined by a 3/16 fillet weld at 2-1/2 spacing unless noted otherwise. A precast concrete tread sits above the stair assembly.
1 19/32" 5x3x1/4 CONT. BETWEEN STRINGERS W/ (2) 5/8"Ø x 1 1/2'' A325 T.C. BOLTS ( (1) BOLT W/IN 4'' OF EA. STRINGER ) STRINGER 1/4 X 1Ø (UNO) NOSING ANGLE TO STRINGER 3/16 2 1/2 P L MAX. 1' - 0 1/4" 5" LANDING CHANNEL PSC LANDING SEE LANDING DETAILS PRECAST TREAD (B/O) SEE S1Ø3 EDGE OF LANDING . DIM. PT.
