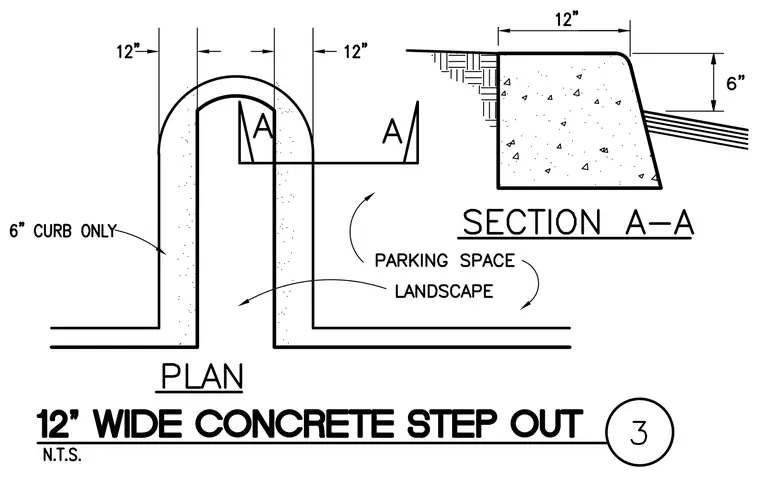

A 12-inch wide concrete step out curb separates a parking space from a landscape area. The plan view shows a curved concrete curb configuration with twelve-inch spacing dimensions and a six-inch curb only designation. Section A-A details the concrete curb profile featuring a six-inch vertical height and a twelve-inch top width with reinforcing steel extending into the assembly.
