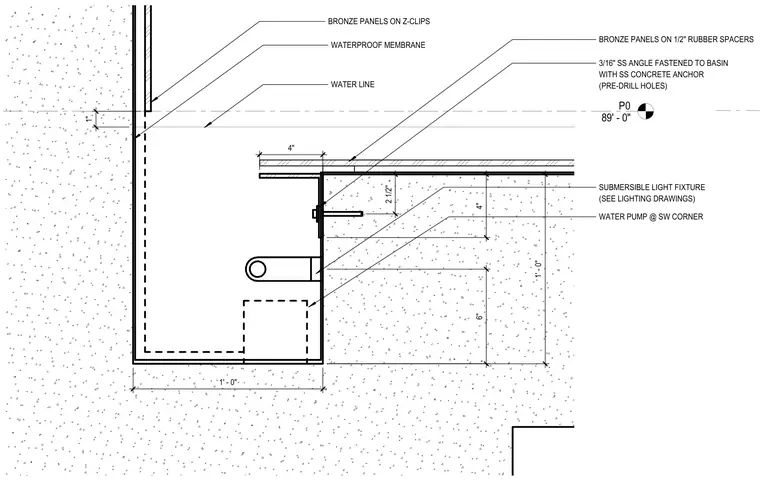

Bronze wall panels are mounted on Z-clips and half-inch rubber spacers over a continuous waterproof membrane lining the concrete basin. A three-sixteenth-inch stainless steel angle is fastened to the concrete basin using stainless steel concrete anchors into pre-drilled holes. A submersible light fixture and water pump are positioned within the trench alongside a six-inch water line. The basin floor and walls are cast-in-place concrete detailed with precise dimensional clearances for water containment.
P0 89' - 0" BRONZE PANELS ON Z-CLIPS 4 " 4 " 2 1 / 2 " WATERPROOF MEMBRANE 1 " 3/16" SS ANGLE FASTENED TO BASIN WITH SS CONCRETE ANCHOR (PRE-DRILL HOLES) SUBMERSIBLE LIGHT FIXTURE (SEE LIGHTING DRAWINGS) WATER PUMP @ SW CORNER 1 ' - 0 " 1 ' - 0 " 6 " WATER LINE BRONZE PANELS ON 1/2" RUBBER SPACERS
