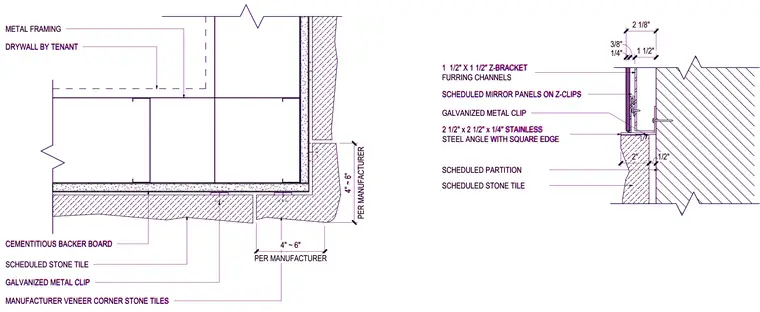

A corner transition between scheduled stone tile and scheduled mirror panels. The assembly is anchored to a scheduled partition with cementitious backer board, metal framing, and drywall by tenant. A two-and-a-half by two-and-a-half by one-quarter-inch stainless steel angle with a square edge is secured with galvanized metal clips to support the stone tile. Adjacent mirror panels are mounted on z-clips attached to one-and-a-half by one-and-a-half-inch z-bracket furring channels. Manufacturer veneer corner stone tiles are integrated with dimensions varying between four and six inches.
SCHEDULED STONE TILE 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE GALVANIZED METAL CLIP SCHEDULED PARTITION 1 1/2" X 1 1/2" Z-BRACKET FURRING CHANNELS SCHEDULED MIRROR PANELS ON Z-CLIPS 2" 1/2" 1/4" 3/8" 1 1/2" 2 1/8" GALVANIZED METAL CLIP SCHEDULED STONE TILE METAL FRAMING DRYWALL BY TENANT MANUFACTURER VENEER CORNER STONE TILES PER MANUFACTURER 4" ~ 6" PER MANUFACTURER 4" ~ 6" CEMENTITIOUS BACKER BOARD SCHEDULED STONE TILE 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE GALVANIZED METAL CLIP SCHEDULED PARTITION 1 1/2" X 1 1/2" Z-BRACKET FURRING CHANNELS SCHEDULED MIRROR PANELS ON Z-CLIPS 2" 1/2" 1/4" 3/8" 1 1/2" 2 1/8" GALVANIZED METAL CLIP SCHEDULED STONE TILE METAL FRAMING DRYWALL BY TENANT MANUFACTURER VENEER CORNER STONE TILES PER MANUFACTURER 4" ~ 6" PER MANUFACTURER 4" ~ 6" CEMENTITIOUS BACKER BOARD
