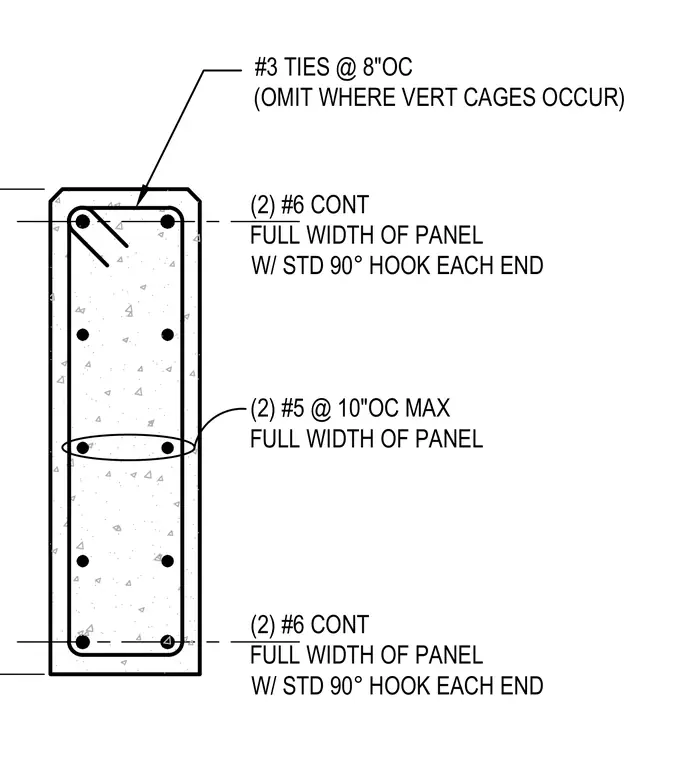

This concrete wall panel section detail features two continuous number six bars spanning the full width of the panel with standard ninety-degree hooks at each end. Additional reinforcement includes two number five bars spaced at ten inches on center maximum across the full width of the panel. Number three ties are placed at eight inches on center and omitted where vertical cages occur.
(2) #5 @ 10"OC MAX FULL WIDTH OF PANEL #3 TIES @ 8"OC (OMIT WHERE VERT CAGES OCCUR) (2) #6 CONT FULL WIDTH OF PANEL W/ STD 90° HOOK EACH END (2) #6 CONT FULL WIDTH OF PANEL W/ STD 90° HOOK EACH END
