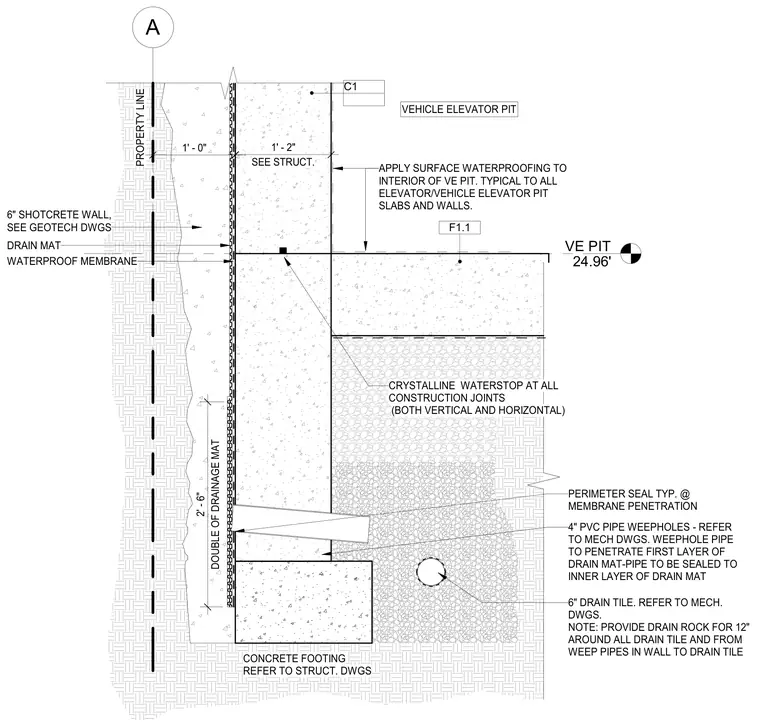

A six-inch shotcrete wall is backed by a waterproof membrane and drain mat system, with a double layer of drainage mat specified along the lower wall. Crystalline waterstops are detailed at all vertical and horizontal construction joints, and surface waterproofing is applied to the interior of the pit. Four-inch PVC pipe weep holes penetrate the first layer of the drain mat and are sealed to the inner layer, discharging into a six-inch drain tile surrounded by drain rock. A perimeter seal is applied at all membrane penetrations.
A F1.1 VE PIT 24.96' SEE STRUCT. 1' - 2" C1 PROPERTY LINE APPLY SURFACE WATERPROOFING TO INTERIOR OF VE PIT. TYPICAL TO ALL ELEVATOR/VEHICLE ELEVATOR PIT SLABS AND WALLS. 6" SHOTCRETE WALL, SEE GEOTECH DWGS DRAIN MAT CRYSTALLINE WATERSTOP AT ALL CONSTRUCTION JOINTS (BOTH VERTICAL AND HORIZONTAL) 1' - 0" WATERPROOF MEMBRANE VEHICLE ELEVATOR PIT DOUBLE OF DRAINAGE MAT 2' - 6" CONCRETE FOOTING REFER TO STRUCT. DWGS PERIMETER SEAL TYP. @ MEMBRANE PENETRATION 4" PVC PIPE WEEPHOLES - REFER TO MECH DWGS. WEEPHOLE PIPE TO PENETRATE FIRST LAYER OF DRAIN MAT-PIPE TO BE SEALED TO INNER LAYER OF DRAIN MAT 6" DRAIN TILE. REFER TO MECH. DWGS. NOTE: PROVIDE DRAIN ROCK FOR 12" AROUND ALL DRAIN TILE AND FROM WEEP PIPES IN WALL TO DRAIN TILE
