Architectural · A-B5DBZ

Typical Head Rail Assembly Detail

Materials

Concrete Steel Stainless Steel Timber / Wood

Elements

Columns Walls Partitions Doors Floors / Slabs Anchors / Embeds Roof / Floor Openings

Connections

Bolted Connection Embed Plate

About this detail

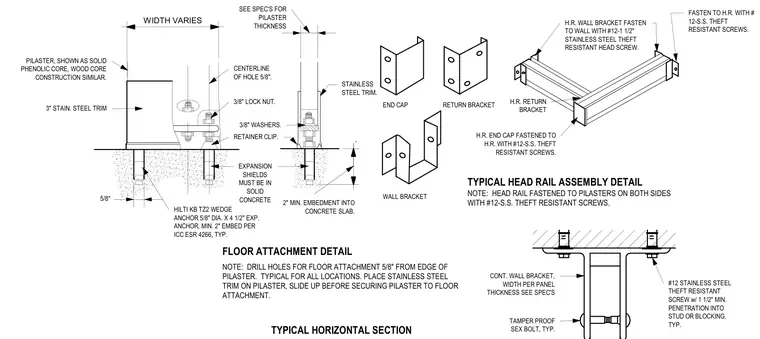

Toilet compartment partition connections include floor anchorage, wall brackets, and head rail bracing details. The floor attachment utilizes a Hilti KB-TZ2 wedge anchor 5/8-inch diameter by 4-1/2 inches long with a minimum 2-inch embedment into a solid concrete slab, secured with 3/8-inch lock nuts, washers, and a retainer clip. A 3-inch stainless steel trim is placed over the pilaster and slid up before securing the pilaster to the floor attachment. The pilaster features solid phenolic core or wood core construction, secured to the head rail on both sides with number 12 stainless steel theft-resistant screws. Wall attachments utilize continuous wall brackets sized per panel thickness, fastened with tamper-proof sex bolts and number 12 stainless steel screws with a 1-1/2 inch minimum penetration into studs or blocking.
