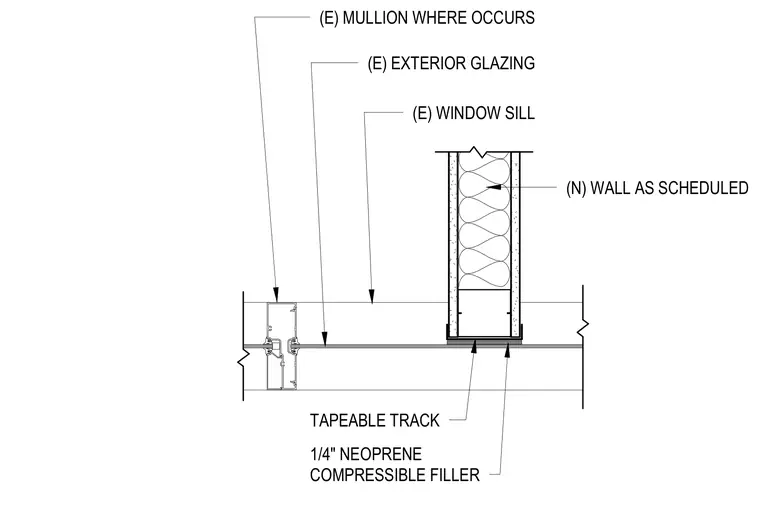

The new partition wall as scheduled terminates at the exterior glazing line using a tapeable track and a one-quarter inch neoprene compressible filler. The assembly integrates with the existing window sill and existing mullion where it occurs.
(E) MULLION WHERE OCCURS (E) EXTERIOR GLAZING (N) WALL AS SCHEDULED (E) WINDOW SILL TAPEABLE TRACK 1/4" NEOPRENE COMPRESSIBLE FILLER
