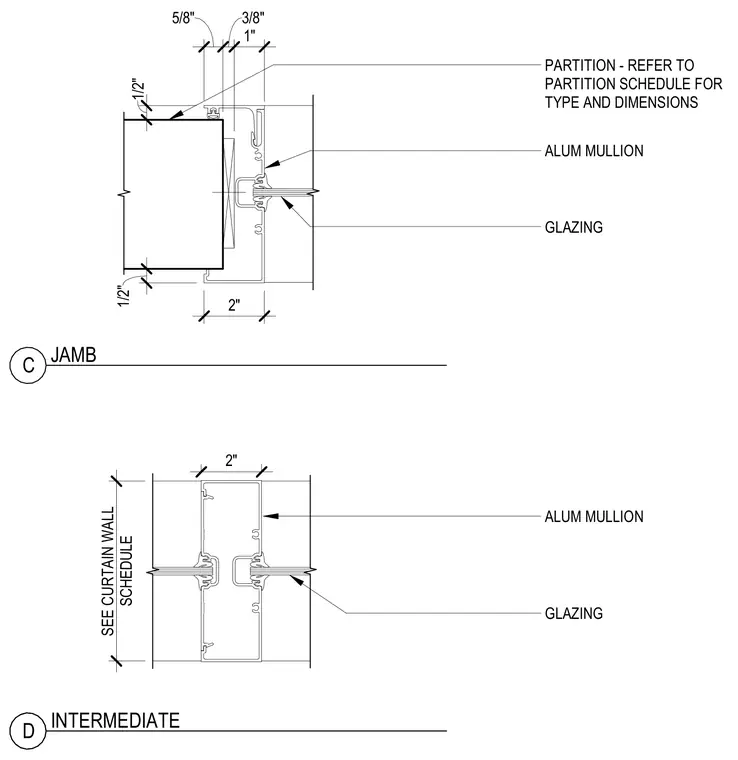

An aluminum mullion frames the glass glazing at the curtain wall interface. The jamb detail abuts an interior partition, sized per the partition schedule, with dimensional clearances including half-inch, five-eighths-inch, three-eighths-inch, and one-inch gaps. The intermediate detail provides a standard vertical mullion junction with adjacent glazing panes as specified in the curtain wall schedule.
D C JAMB INTERMEDIATE PARTITION - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS ALUM MULLION GLAZING ALUM MULLION GLAZING 2" 2" 5/8" 3/8" 1" 1/2" 1/2" SCHEDULE SEE CURTAIN WALL
