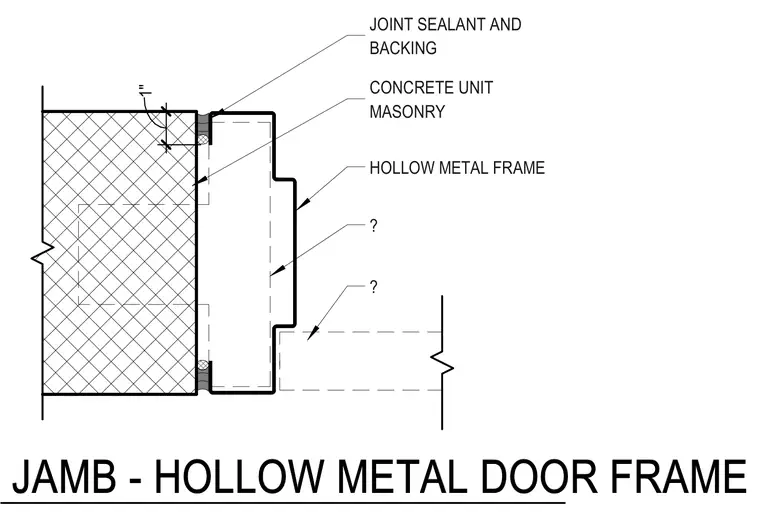

A hollow metal door frame is set into the opening of a concrete unit masonry wall. The joint between the frame and the masonry is sealed with joint sealant backed by a compressible rod. The head and jamb assembly maintains a one-inch clearance detail.
CONCRETE UNIT MASONRY ? JOINT SEALANT AND BACKING ? 1 " HOLLOW METAL FRAME JAMB - HOLLOW METAL DOOR FRAME
