Architectural · A-B4TCY

Partial Height Furring on Substrate Detail

Materials

Concrete Timber / Wood Masonry / CMU Metal (misc.)Gypsum / Drywall

Elements

Ceilings Floors / Slabs Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

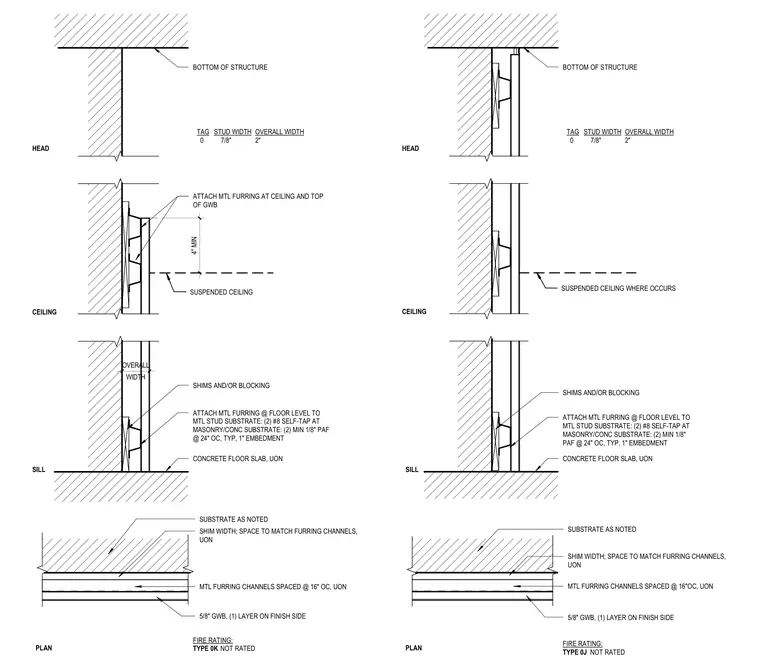

This assembly details a partial-height metal furring system secured to a masonry or concrete substrate with two number eight self-tapping screws or two minimum one-eighth-inch powder-actuated fasteners spaced at twenty-four inches on center with one-inch embedment. Metal furring channels are spaced at sixteen inches on center and receive a single layer of five-eighths-inch gypsum wallboard on the finish side, installed with shims and blocking as needed. The head and ceiling conditions coordinate with suspended ceilings and the bottom of the structure, providing fire rating designations of type zero-k or type zero-j as noted.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
