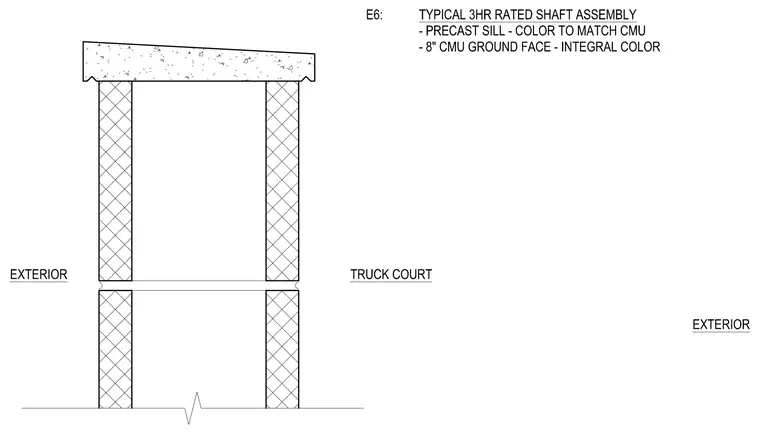

A three-hour rated shaft assembly is constructed with eight-inch ground-face concrete masonry units featuring an integral exterior color. A precast concrete sill sits atop the masonry wall, color-matched to the concrete masonry units. The exterior wall configuration faces a truck court.
E6: TYPICAL 3HR RATED SHAFT ASSEMBLY - PRECAST SILL - COLOR TO MATCH CMU - 8" CMU GROUND FACE - INTEGRAL COLOR EXTERIOR TRUCK COURT EXTERIOR
