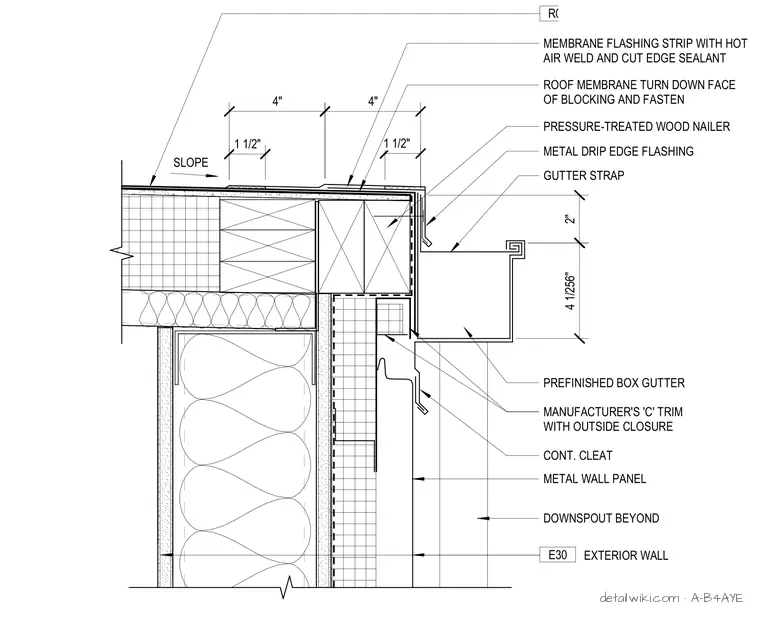

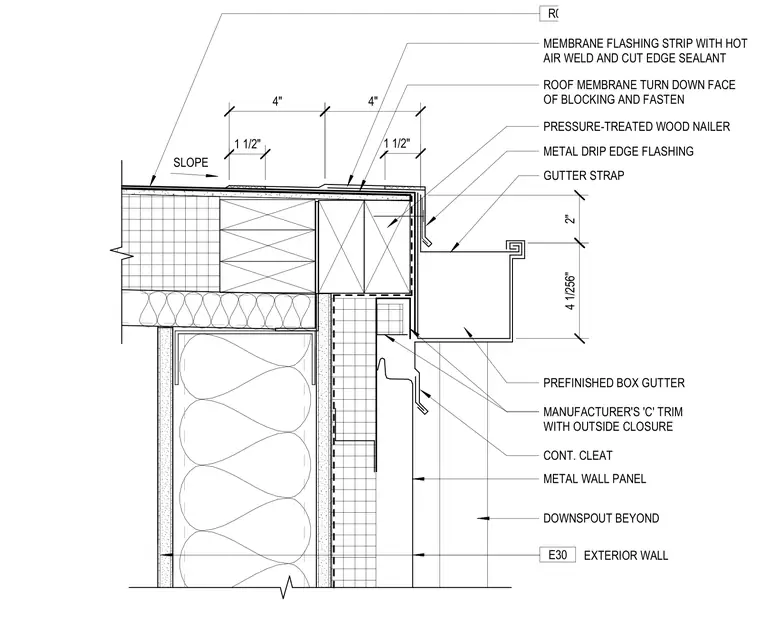

The roof assembly R01 terminates at a parapet capped with a pressure-treated wood nailer. The roof membrane turns down the face of the blocking and is secured, then covered by a membrane flashing strip with a hot-air-welded seam and cut-edge sealant. A metal drip edge flashing extends over the nailer and integrates with a prefinished box gutter supported by gutter straps. The gutter assembly includes a continuous cleat and a manufacturer's 'C' trim with an outside closure. Below the gutter, the exterior wall E30 features metal wall panels, with a downspout positioned beyond the section plane.
Text on the drawing
MEMBRANE FLASHING STRIP WITH HOT AIR WELD AND CUT EDGE SEALANT METAL DRIP EDGE FLASHING GUTTER STRAP CONT. CLEAT 1 1/2" 4" 4" 1 1/2" 4 1/256" 2" METAL WALL PANEL SLOPE PREFINISHED BOX GUTTER DOWNSPOUT BEYOND MANUFACTURER'S 'C' TRIM WITH OUTSIDE CLOSURE ROOF ASSEMBLY R01 EXTERIOR WALL E30 PRESSURE-TREATED WOOD NAILER ROOF MEMBRANE TURN DOWN FACE OF BLOCKING AND FASTEN
