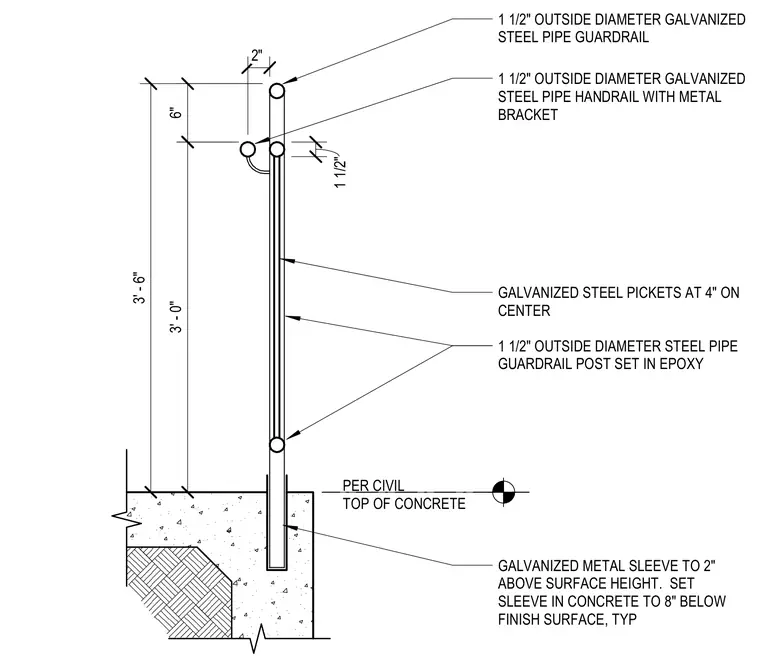

An exterior guardrail assembly is anchored into a concrete substrate using a 1 1/2-inch outside diameter steel pipe guardrail post set within a galvanized metal sleeve. The sleeve extends two inches above the finish surface and is anchored eight inches deep into the concrete using epoxy. The top rail consists of a 1 1/2-inch outside diameter galvanized steel pipe guardrail positioned three feet six inches above the finish surface. A separate 1 1/2-inch outside diameter galvanized steel pipe handrail is attached to the post with a metal bracket at three feet above the finish surface. Galvanized steel pickets spaced at four inches on center run vertically between the rails.
1 1/2" OUTSIDE DIAMETER GALVANIZED STEEL PIPE GUARDRAIL 1 1/2" OUTSIDE DIAMETER GALVANIZED STEEL PIPE HANDRAIL WITH METAL BRACKET 1 1/2" OUTSIDE DIAMETER STEEL PIPE GUARDRAIL POST SET IN EPOXY GALVANIZED METAL SLEEVE TO 2" ABOVE SURFACE HEIGHT. SET SLEEVE IN CONCRETE TO 8" BELOW FINISH SURFACE, TYP PER CIVIL TOP OF CONCRETE GALVANIZED STEEL PICKETS AT 4" ON CENTER 3' - 0" 1 1/2" 3' - 6" 6" 2"
