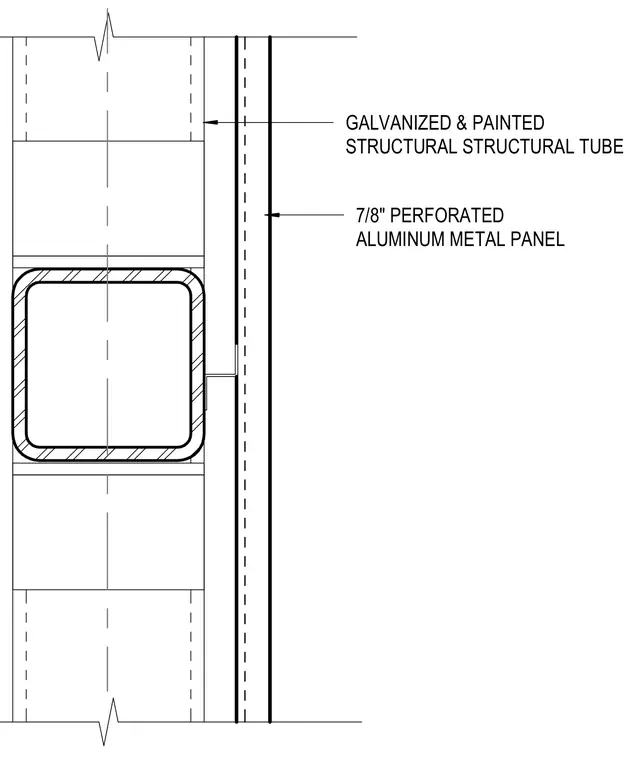

A galvanized and painted structural tube acts as the primary framing member for the mechanical screen. A seven-eighths-inch perforated aluminum metal panel attaches to the structural tube via a formed metal clip. The assembly provides intermediate support for exterior screening elements.
GALVANIZED & PAINTED STRUCTURAL STRUCTURAL TUBE 7/8" PERFORATED ALUMINUM METAL PANEL
