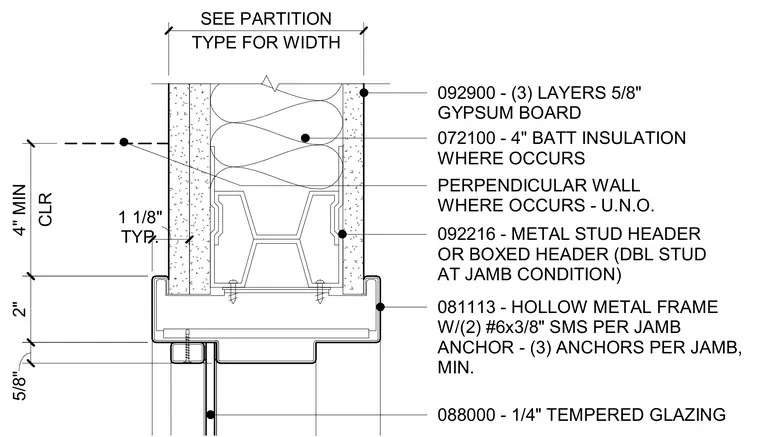

A hollow metal frame is secured to a metal stud header or boxed header with two number six by three-eighth inch sheet metal screws per jamb anchor, utilizing a minimum of three anchors per jamb. The surrounding partition is framed with metal studs and clad with three layers of five-eighth-inch gypsum board on each side, enclosing four inches of batt insulation where specified. A quarter-inch tempered glazing pane is set into the hollow metal frame profile with a typical one-and-one-eighth-inch clearance.
2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - (3) LAYERS 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. 088000 - 1/4" TEMPERED GLAZING TYP. 1 1/8" 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS TYPE FOR WIDTH SEE PARTITION
