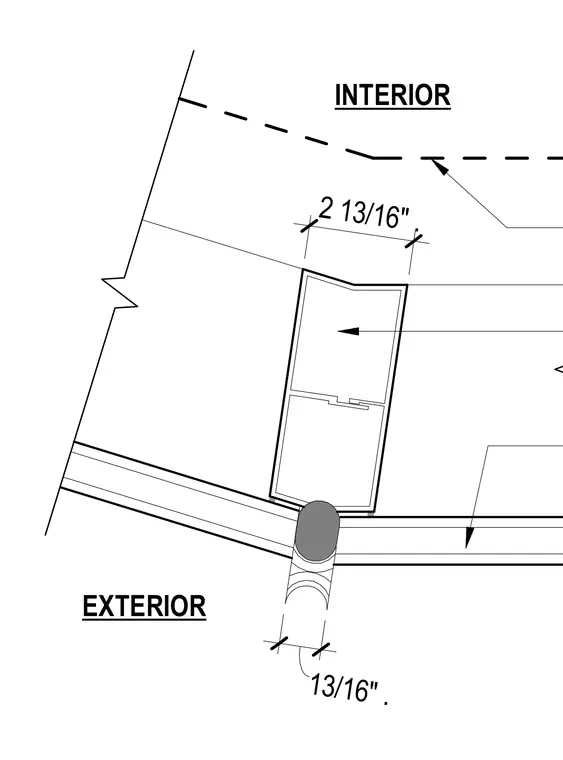

The exterior glazing assembly integrates with the interior vertical mullion at a building corner. Dimensions of 13/16 inch and 2 13/16 inch define the clearances and setback dimensions around the mullion profile. Exterior and interior zones are delineated with corresponding alignment markers.
EXTERIOR INTERIOR 13/16" . 2 13/16" .
