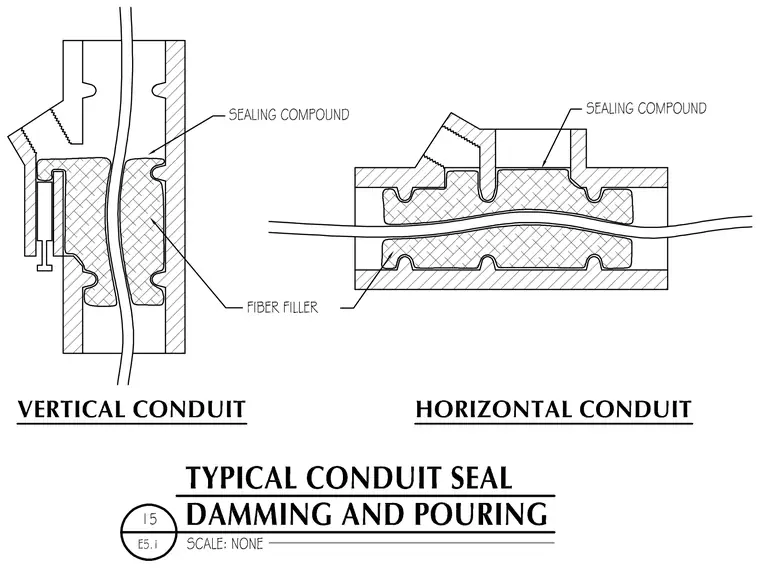

Electrical conduit sealing details show vertical and horizontal conduit runs packed with fiber filler and finished with a top layer of sealing compound. Cables pass directly through the center of the sealing fitting, surrounded by the packing materials. The vertical installation uses a conduit seal fitting with a threaded plug and drain opening, while the horizontal installation uses a tee-style fitting with an angled access port. Both details illustrate the proper damming and pouring method required to seal hazardous or wet location conduit penetrations.
