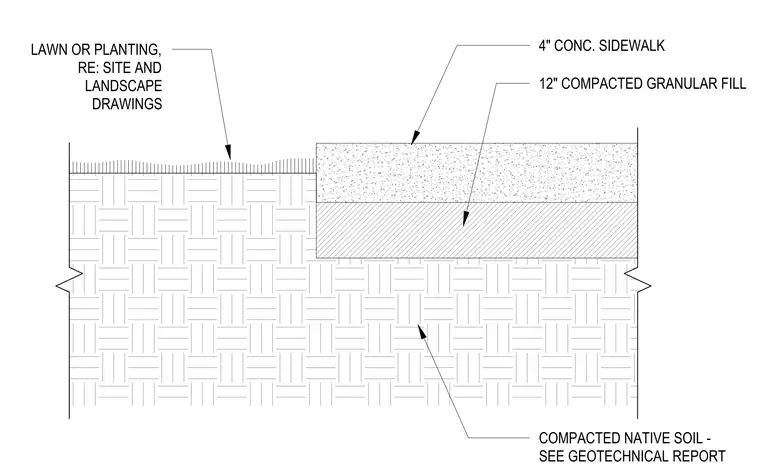

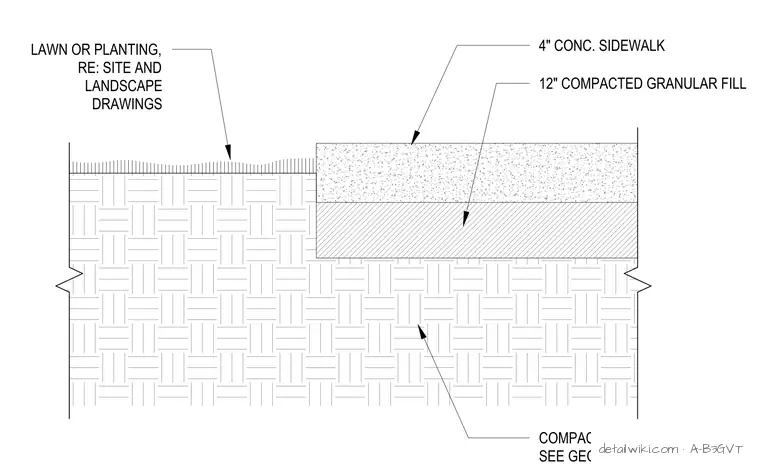

This assembly consists of a four-inch thick concrete sidewalk supported by a twelve-inch layer of compacted granular fill. The sidewalk edge abuts a lawn or planting area, with the specific landscape requirements referenced in the site and landscape drawings. The entire assembly rests upon compacted native soil, which is to be prepared in accordance with the project geotechnical report.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
