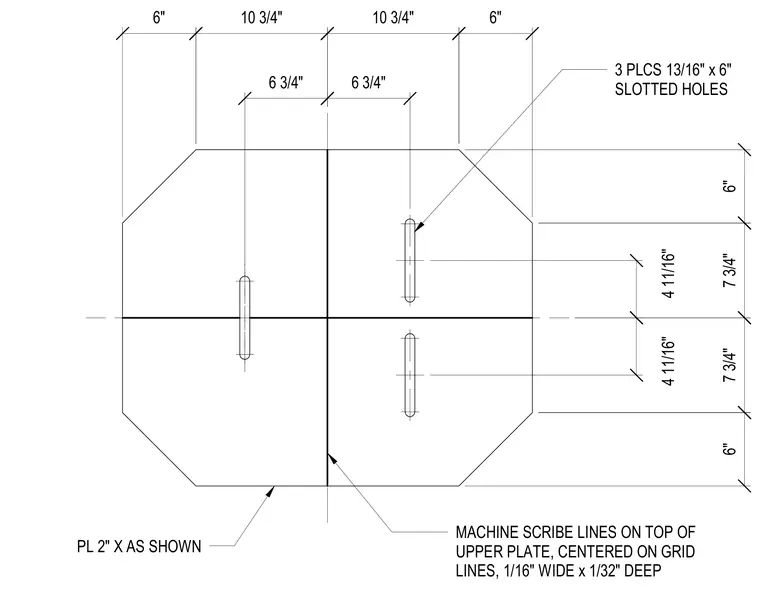

This structural steel detail shows a 2-inch thick steel plate configured with three 13/16-inch by 6-inch slotted holes in specific locations. The upper plate features machined scribe lines that are 1/16-inch wide and 1/32-inch deep, centered directly on the intersecting grid lines. Dimensions dictate precise edge distances and spacing across the octagonal or clipped-corner plate profile. This assembly accommodates differential movement and precise alignment during tower structural erection.
10 3/4" 10 3/4" 6" 6" 6 3/4" 6 3/4" 4 11/16" 4 11/16" 7 3/4" 7 3/4" 6" 6" PL 2" X AS SHOWN 3 PLCS 13/16" x 6" SLOTTED HOLES MACHINE SCRIBE LINES ON TOP OF UPPER PLATE, CENTERED ON GRID LINES, 1/16" WIDE x 1/32" DEEP
