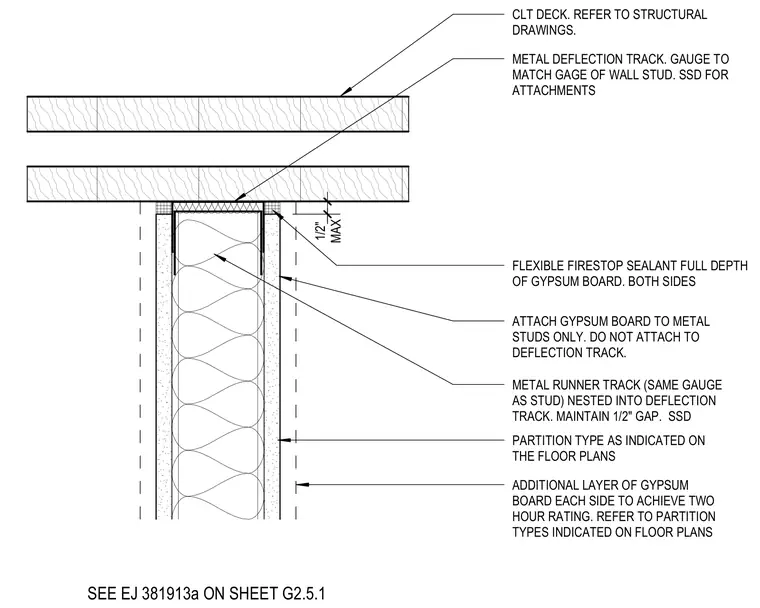

A cross-laminated timber deck supports a metal deflection track sized to match the gauge of the wall studs. A metal runner track is nested into the deflection track, maintaining a one-half inch gap for structural movement. Gypsum board layers are attached to the metal studs only and left unattached to the deflection track. A maximum one-half inch flexible firestop sealant fills the full depth of the gypsum board on both sides of the partition head. Additional layers of gypsum board are applied to each side to achieve a two-hour fire rating.
METAL RUNNER TRACK (SAME GAUGE AS STUD) NESTED INTO DEFLECTION TRACK. MAINTAIN 1/2" GAP. SSD CLT DECK. REFER TO STRUCTURAL DRAWINGS. METAL DEFLECTION TRACK. GAUGE TO MATCH GAGE OF WALL STUD. SSD FOR ATTACHMENTS ATTACH GYPSUM BOARD TO METAL STUDS ONLY. DO NOT ATTACH TO DEFLECTION TRACK. PARTITION TYPE AS INDICATED ON THE FLOOR PLANS ADDITIONAL LAYER OF GYPSUM BOARD EACH SIDE TO ACHIEVE TWO HOUR RATING. REFER TO PARTITION TYPES INDICATED ON FLOOR PLANS MAX 1/2" FLEXIBLE FIRESTOP SEALANT FULL DEPTH OF GYPSUM BOARD. BOTH SIDES SEE EJ 381913a ON SHEET G2.5.1
