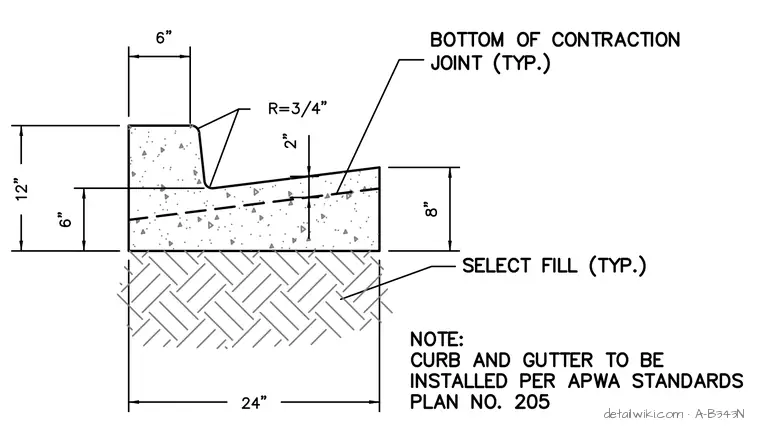

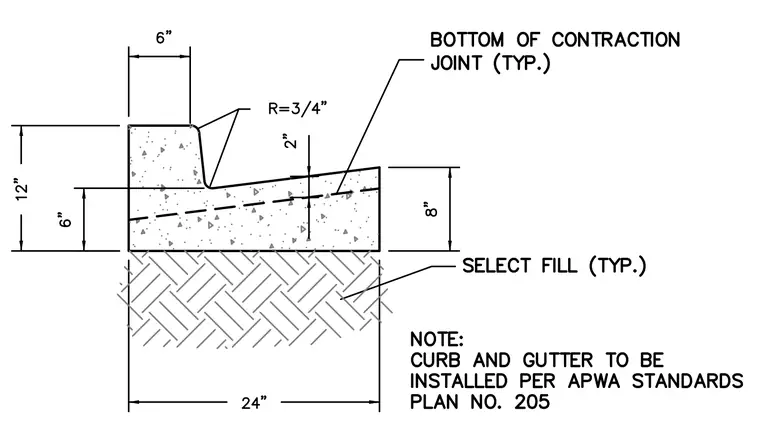

This concrete curb and gutter assembly features a total width of 24 inches, with a 6-inch wide curb top and a 12-inch total curb height. The gutter section transitions to an 8-inch height at the outer edge, with a 3/4-inch radius at the curb face. A contraction joint is located 2 inches below the gutter surface, typically applied throughout the run. The entire assembly is supported by a layer of select fill.
