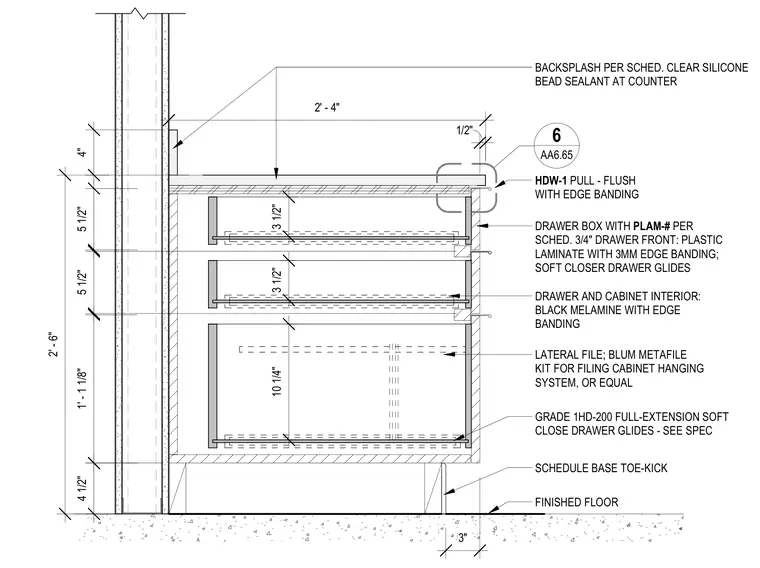

This desk-height base cabinet sits on a finished floor grade with a scheduled base toe-kick and a total height of two feet six inches. The cabinet interior is constructed of black melamine with edge banding and includes full-extension soft-close drawer glides. Three-quarter-inch drawer fronts feature plastic laminate with three-millimeter edge banding, a flush HDW-1 pull, and soft-closer drawer glides. The bottom drawer incorporates a Blum Metafile kit or equal for a lateral file hanging system. A backsplash with a clear silicone bead sealant is installed at the counter against the wall.
DRAWER AND CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING SCHEDULE BASE TOE-KICK DRAWER BOX WITH PLAM-# PER SCHED. 3/4" DRAWER FRONT: PLASTIC LAMINATE WITH 3MM EDGE BANDING; SOFT CLOSER DRAWER GLIDES BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER FINISHED FLOOR GRADE 1HD-200 FULL-EXTENSION SOFT CLOSE DRAWER GLIDES - SEE SPEC 4 1/2" HDW-1 PULL - FLUSH WITH EDGE BANDING 3 1/2" 5 1/2" 10 1/4" 4" AA6.65 6 2' - 6" 1' - 1 1/8" 3" 2' - 4" 1/2" LATERAL FILE; BLUM METAFILE KIT FOR FILING CABINET HANGING SYSTEM, OR EQUAL 3 1/2" 5 1/2"
