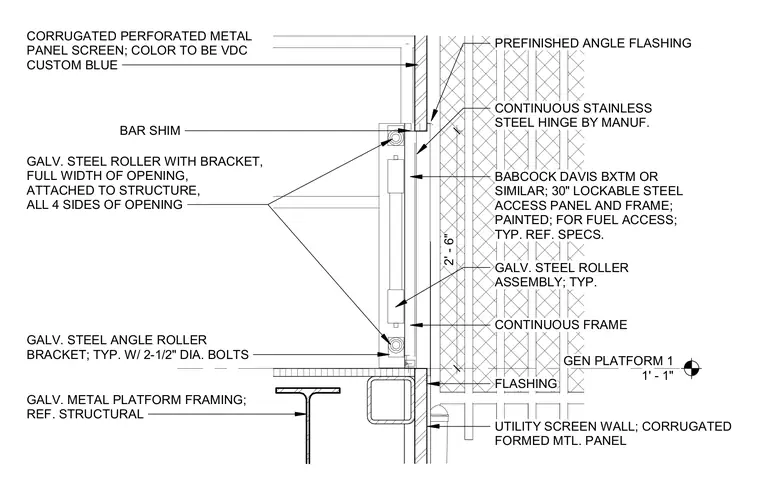

A thirty-inch lockable painted steel access panel and frame is integrated into a utility screen wall formed of corrugated perforated metal panels. The assembly is secured with a continuous stainless steel hinge by Babcock-Davis or similar, complete with prefinished angle flashing. A galvanized steel roller assembly spans the full width of the opening and is attached to the structure on all four sides with galvanized steel angle roller brackets and two-and-a-half-inch diameter bolts with bar shims. Galvanized metal platform framing supports the base of the opening.
GEN PLATFORM 1 1' - 1" 2' - 6" PREFINISHED ANGLE FLASHING CONTINUOUS STAINLESS STEEL HINGE BY MANUF. BABCOCK DAVIS BXTM OR SIMILAR; 30" LOCKABLE STEEL ACCESS PANEL AND FRAME; PAINTED; FOR FUEL ACCESS; TYP. REF. SPECS. GALV. STEEL ROLLER ASSEMBLY; TYP. CONTINUOUS FRAME FLASHING UTILITY SCREEN WALL; CORRUGATED FORMED MTL. PANEL CORRUGATED PERFORATED METAL PANEL SCREEN; COLOR TO BE VDC CUSTOM BLUE BAR SHIM GALV. STEEL ROLLER WITH BRACKET, FULL WIDTH OF OPENING, ATTACHED TO STRUCTURE, ALL 4 SIDES OF OPENING GALV. STEEL ANGLE ROLLER BRACKET; TYP. W/ 2-1/2" DIA. BOLTS GALV. METAL PLATFORM FRAMING; REF. STRUCTURAL
