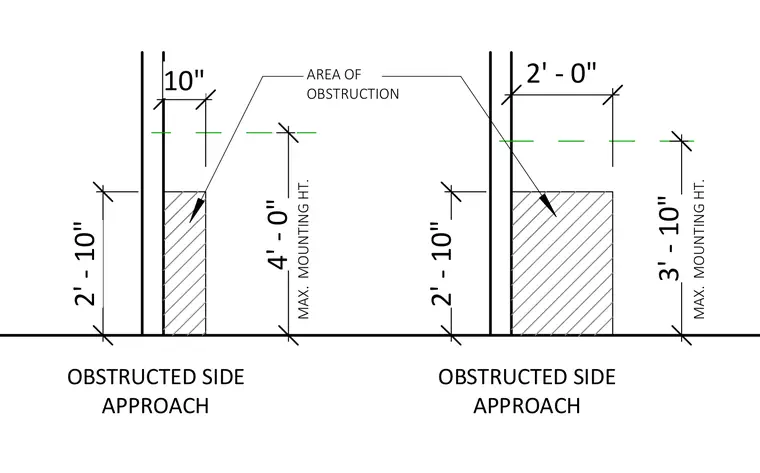

Accessible fixture mounting heights and clear floor space requirements for obstructed side approach configurations. The drawing specifies a maximum mounting height of 4 feet 0 inches and 3 feet 10 inches over defined areas of obstruction, with side clearances of 10 inches and 2 feet 0 inches respectively.
OBSTRUCTED SIDE APPROACH 2' - 10" 4' - 0" MAX. MOUNTING HT. 2' - 0" 2' - 10" MAX. MOUNTING HT. 10" 3' - 10" OBSTRUCTED SIDE APPROACH AREA OF OBSTRUCTION
