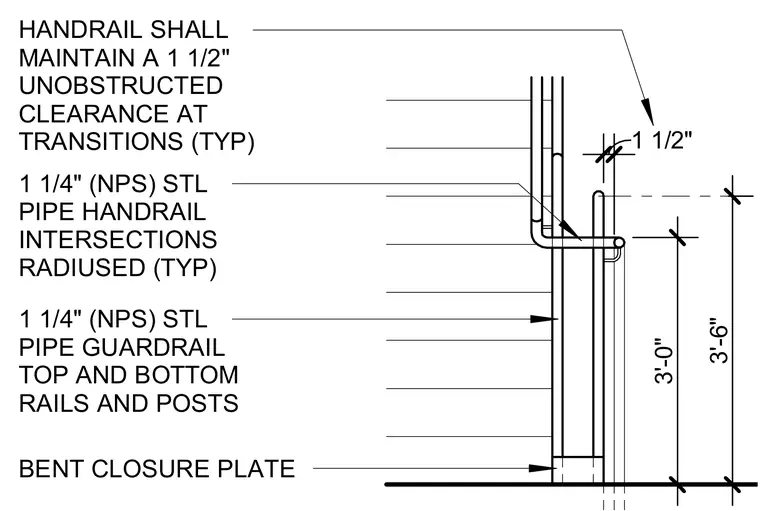

A steel pipe guardrail and handrail transition assembly features 1 1/4 inch nominal pipe size steel pipe for top and bottom rails and posts. All handrail intersections are radiused typically, maintaining a 1 1/2 inch unobstructed clearance at transitions. A bent closure plate finishes the base of the assembly. Vertical dimensions indicate a 3'-0" rail height and a 3'-6" overall height.
3'-0" 1 1/2" BENT CLOSURE PLATE HANDRAIL SHALL MAINTAIN A 1 1/2" UNOBSTRUCTED CLEARANCE AT TRANSITIONS (TYP) 1 1/4" (NPS) STL PIPE GUARDRAIL TOP AND BOTTOM RAILS AND POSTS 1 1/4" (NPS) STL PIPE HANDRAIL INTERSECTIONS RADIUSED (TYP) 3'-6"
