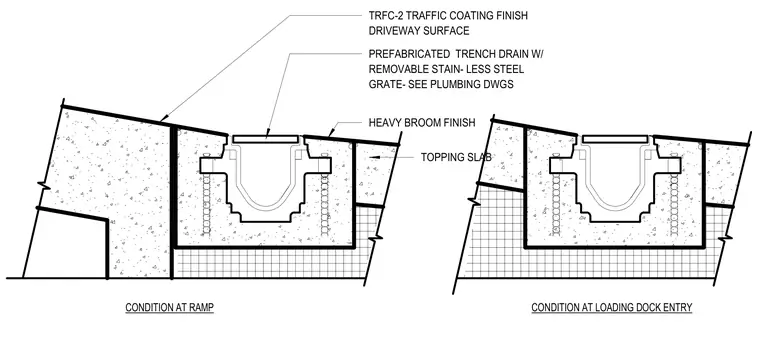

A prefabricated trench drain with a removable stainless steel grate is embedded within a heavy broom finish concrete topping slab. The surrounding driveway surface receives a traffic coating finish designated as TRFC-2. Details show conditions at both a ramp and a loading dock entry.
TRFC-2 TRAFFIC COATING FINISH DRIVEWAY SURFACE PREFABRICATED TRENCH DRAIN W/ REMOVABLE STAIN- LESS STEEL GRATE- SEE PLUMBING DWGS HEAVY BROOM FINISH TOPPING SLAB C O N D I T I O N A T R A M P C O N D I T I O N A T L O A D I N G D O C K E N T R Y
