This wall and floor transition assembly features a concrete wall backed by geofoam insulation, three-and-five-eighths-inch metal studs, and five-eighths-inch gypsum board. The floor slab at top of slab elevation ninety-one feet zero inches receives an anti-crack and uncoupling membrane, float mortar for leveling, and scheduled stone with a stone threshold. A tile movement joint is installed per TCNA EJ171F standards with sealant matching the grout color. Door casing and door framing details are coordinated with the door and window schedule, alongside a tower access ladder.

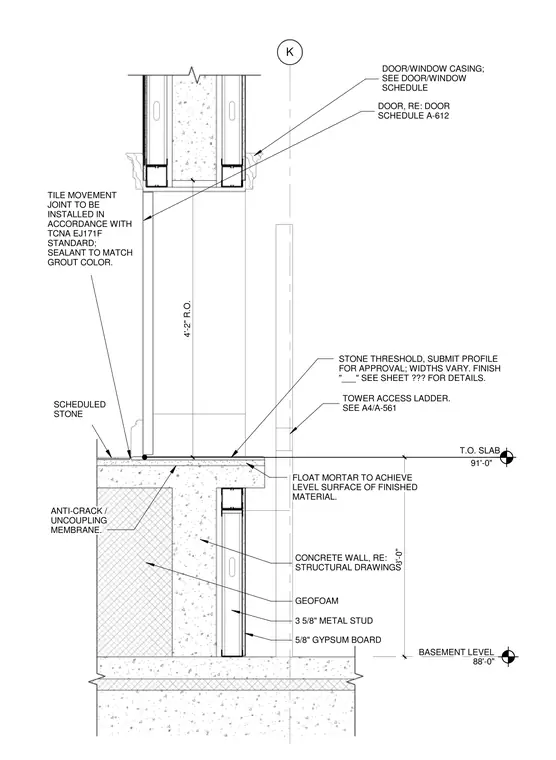

K BASEMENT LEVEL 88'-0" 3'-0" T.O. SLAB 91'-0" 4'-2" R.O. DOOR, RE: DOOR SCHEDULE A-612 DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE GEOFOAM 3 5/8" METAL STUD 5/8" GYPSUM BOARD CONCRETE WALL, RE: STRUCTURAL DRAWINGS TOWER ACCESS LADDER. SEE A4/A-561 TILE MOVEMENT JOINT TO BE INSTALLED IN ACCORDANCE WITH TCNA EJ171F STANDARD; SEALANT TO MATCH GROUT COLOR. SCHEDULED STONE STONE THRESHOLD, SUBMIT PROFILE FOR APPROVAL; WIDTHS VARY. FINISH "___" SEE SHEET ??? FOR DETAILS. FLOAT MORTAR TO ACHIEVE LEVEL SURFACE OF FINISHED MATERIAL. ANTI-CRACK / UNCOUPLING MEMBRANE.
